Description

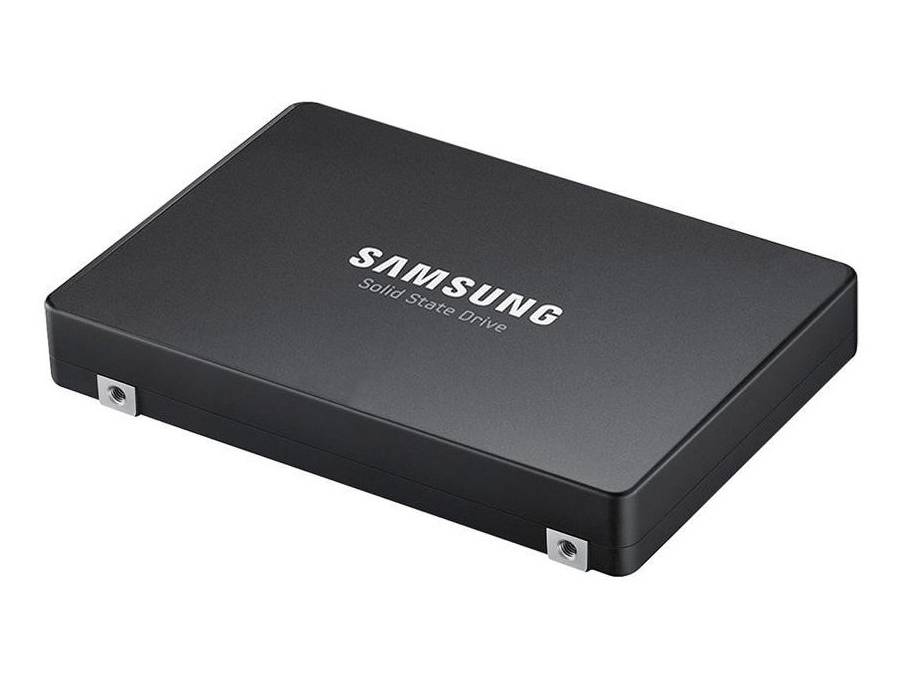

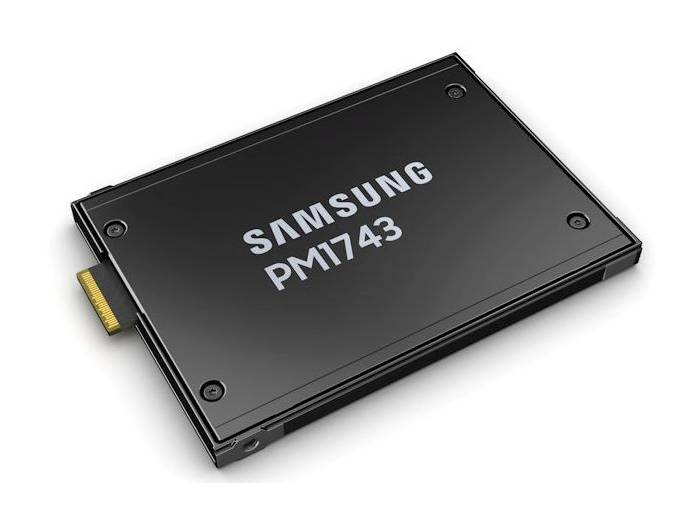

The Lenovo ThinkSystem PM1743 1.92TB Read Intensive NVMe SSD is an enterprise-grade storage solution designed for high-performance, read-intensive and general-purpose data center workloads. Featuring a PCIe 5.0 x4 NVMe interface, this 2.5-inch U.3 hot-swap SSD delivers high throughput and low latency while eliminating the performance bottlenecks associated with traditional SAS and SATA storage.
With sequential read speeds of up to 14,000 MB/s and up to 2,000,000 4K read IOPS, the PM1743 provides responsive storage performance for demanding server environments. Samsung TLC flash technology, advanced ECC, end-to-end data protection, power-loss protection, and Fail-In-Place technology help maintain reliability and data integrity.
The drive also includes TCG Opal 2.0 self-encrypting drive (SED) technology, enabling hardware-level encryption, cryptographic secure erase, and support for protecting data when the drive is removed from a system.
Designed for Lenovo ThinkSystem servers, SKU 4XB7A82366 comes in a 2.5-inch hot-swap configuration and provides 1 DWPD endurance over five years, making it well suited for workloads with predominantly read operations.
Key Features
- 1.92TB enterprise NVMe SSD capacity
- PCIe 5.0 x4 high-speed host interface
- 2.5-inch U.3 hot-swap form factor
- Read Intensive workload classification
- Up to 14,000 MB/s sequential read performance
- Up to 3,000 MB/s sequential write performance
- Up to 2,000,000 random read IOPS
- TCG Opal 2.0 self-encrypting drive support
- 1 DWPD endurance for five years
- 3,504 TB total bytes written endurance
- Advanced ECC and end-to-end data protection
- Power-loss protection
- S.M.A.R.T. support
- Backward compatible with PCIe 4.0 and PCIe 3.0 host interfaces
- Designed for compatible Lenovo ThinkSystem servers
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Family | ThinkSystem |
| Series / Model | PM1743 |
| Part Number / SKU | 4XB7A82366 |
| Feature Code | BTPZ |
| Vendor Part Number | MZWLO1T9HCJR-00A07 |
| Product Type | Solid State Drive |
| Capacity | 1.92TB |
| Drive Type | Read Intensive SSD |
| Form Factor | 2.5-inch |
| Drive Interface | U.3 |
| Host Interface | NVMe PCIe 5.0 x4 |
| Installation Type | Hot-Swap |
| Flash Technology | TLC |
| SED Encryption | TCG Opal 2.0 |
| Endurance | 1 DWPD for 5 years |
| Total Bytes Written (TBW) | 3,504 TB |
| MTBF | 2,500,000 hours |
| Random Read Performance | Up to 2,000,000 IOPS (4 KB) |
| Random Write Performance | Up to 150,000 IOPS (4 KB) |
| Sequential Read Performance | Up to 14,000 MB/s (128 KB) |
| Sequential Write Performance | Up to 3,000 MB/s (128 KB) |
| Random Read / Write Latency | 60 µs / 20 µs |
| Sequential Read / Write Latency | 70 µs / 130 µs |
| Typical Read Power | 19.9 W |
| Typical Write Power | 15.5 W |
| Data Protection | Advanced ECC and End-to-End Data Protection |
| Power-Loss Protection | Supported |
| S.M.A.R.T. Support | Yes |
| PCIe Backward Compatibility | PCIe 4.0 and PCIe 3.0 |
| NVMe Specification | NVMe 1.3 |
| PCI Express Specification | PCI Express Base Specification Rev. 5.0 |
| Primary Application | Read-intensive and general-purpose data center workloads |
| Warranty | 1-Year CRU Limited Warranty |
