Description

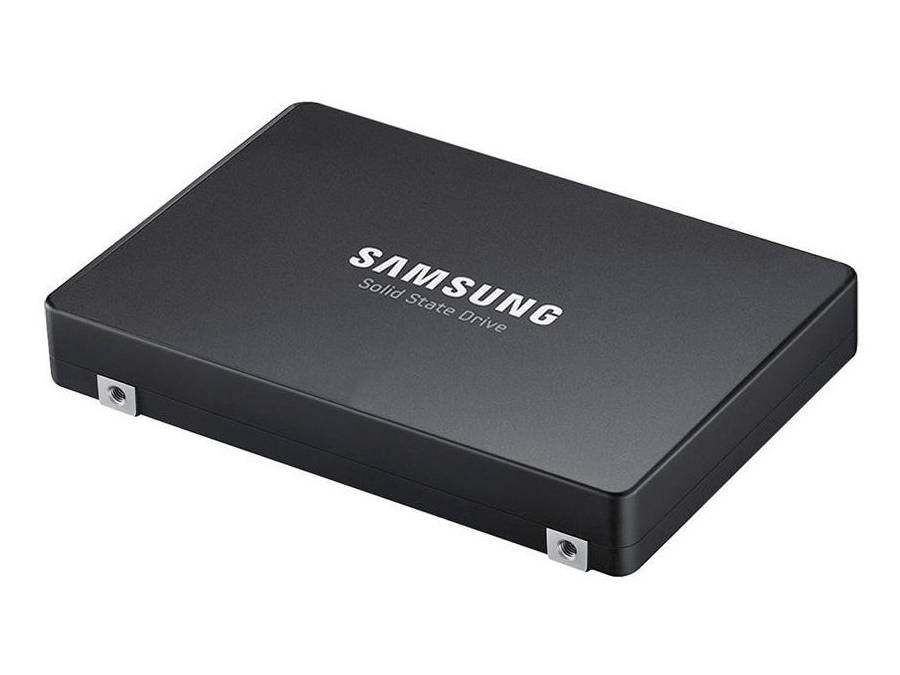

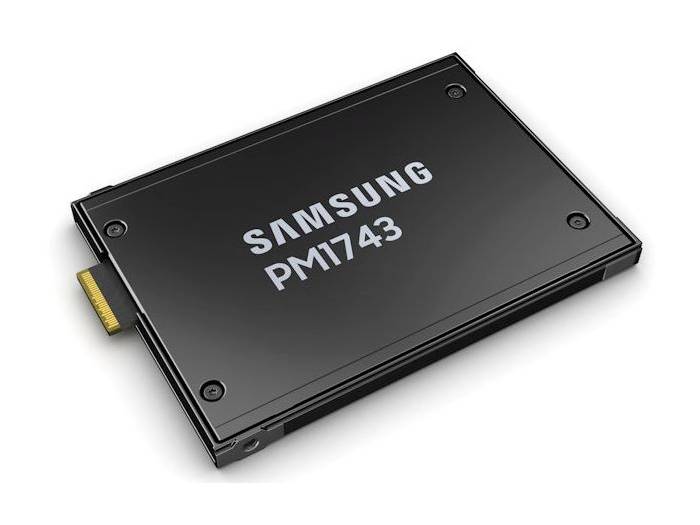

The Lenovo ThinkSystem PM1743 7.68TB Read Intensive NVMe SSD is an enterprise-class storage solution designed for high-performance, read-intensive and general-purpose data center workloads. Featuring a PCIe 5.0 x4 NVMe interface, this 2.5-inch U.3 hot-swap SSD delivers exceptional throughput and low latency for demanding Lenovo ThinkSystem server environments.
Built with Samsung TLC flash technology, the PM1743 supports up to 2.5 million random read IOPS and sequential read speeds of up to 14,000 MB/s when connected through PCIe 5.0. It also provides 14,016 TBW endurance, equivalent to 1 drive write per day over five years.
Integrated TCG Opal 2.0 self-encrypting drive technology helps protect stored data while supporting secure cryptographic erasure and drive-level encryption. Advanced features including end-to-end data protection, power-loss protection, S.M.A.R.T. monitoring, V-NAND machine learning, and Fail-In-Place technology enhance reliability for enterprise applications.
Designed as a 2.5-inch U.3 hot-swap drive, the 4XB7A82368 provides a scalable storage upgrade for compatible Lenovo ThinkSystem servers requiring high-capacity PCIe Gen 5 NVMe performance.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Family | ThinkSystem |
| Series | PM1743 |
| SKU / Part Number | 4XB7A82368 |
| Feature Code | BTQ1 |
| Vendor Part Number | MZWLO7T6HBLA-00A07 |
| Drive Type | Solid State Drive (SSD) |
| Capacity | 7.68TB |
| Workload Type | Read Intensive |
| Form Factor | 2.5-inch |
| Drive Interface | U.3 |
| Host Interface | NVMe PCIe 5.0 x4 |
| Installation Type | Hot-Swap |
| Flash Technology | TLC |
| SED Encryption | TCG Opal 2.0 |
| Endurance | 1 DWPD for 5 Years |
| Total Bytes Written | 14,016 TBW |
| MTBF | 2,500,000 Hours |
| Random Read Performance | Up to 2,500,000 IOPS |
| Random Write Performance | Up to 300,000 IOPS |
| Sequential Read Speed | Up to 14,000 MB/s |
| Sequential Write Speed | Up to 6,000 MB/s |
| Random Read / Write Latency | 60 µs / 20 µs |
| Sequential Read / Write Latency | 80 µs / 80 µs |
| Typical Read / Write Power | 23 W / 21.1 W |
| Backward Compatibility | PCIe 4.0 and PCIe 3.0 |
| Data Protection | Advanced ECC and End-to-End Data Protection |
| Monitoring | S.M.A.R.T. |
| Power-Loss Protection | Supported |
| Warranty | 1-Year CRU Limited Warranty |
