Description
The Lenovo 4XB7A87526 ThinkSystem PM893a 1.92TB Read Intensive SSD is an enterprise-grade 2.5-inch solid-state drive designed for read-intensive and general-purpose data center workloads. Built on the Samsung PM893a platform, it combines reliable SATA 6Gb connectivity, strong read performance, enterprise data protection, and self-encrypting drive capabilities.
With a 1.92TB capacity, the drive delivers up to 97,000 random read IOPS, 31,000 random write IOPS, and sequential speeds of up to 560 MB/s read and 530 MB/s write. Its endurance rating of 1 DWPD for five years, equivalent to 3,504 TBW, makes it suitable for workloads such as web serving, cloud infrastructure, content delivery, caching, databases, and analytics.
The PM893a incorporates TCG Opal self-encrypting drive (SED) technology, allowing data to be encrypted at the drive level without affecting storage performance. Additional enterprise features include Samsung V6 128-layer TLC V-NAND, Advanced ECC, End-to-End Data Protection, power-loss protection, S.M.A.R.T. monitoring, and Dynamic Thermal Guard.

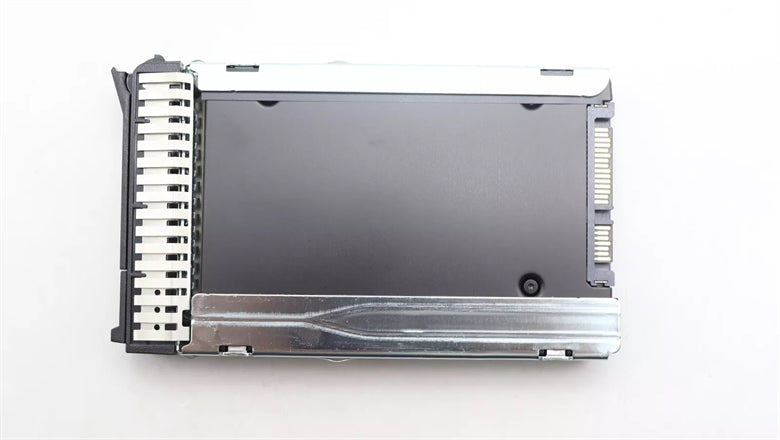

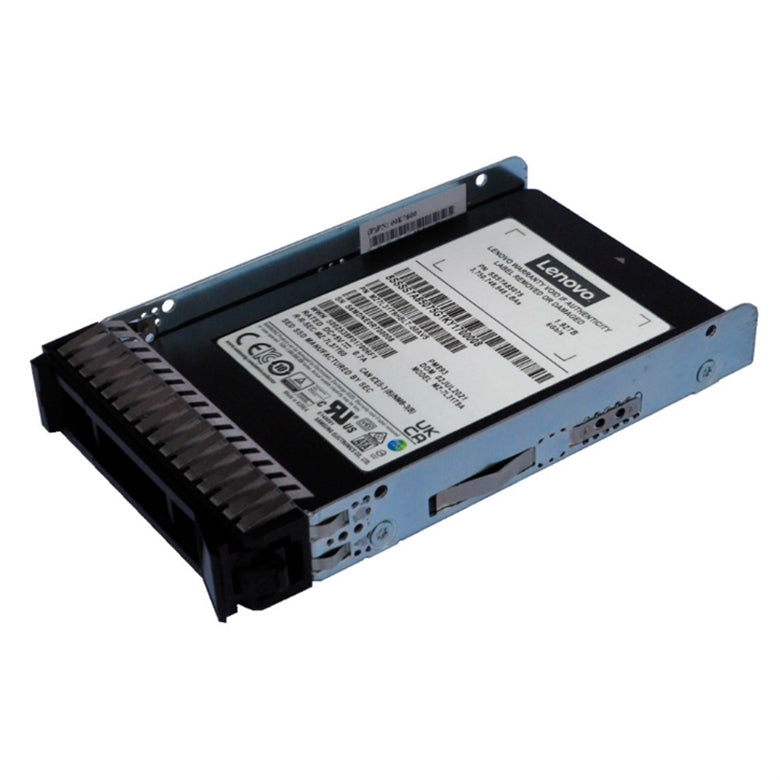

Supplied in a ThinkSystem 2.5-inch hot-swap tray, the 4XB7A87526 is designed for compatible Lenovo ThinkSystem server platforms.
Product Highlights
- 1.92TB enterprise SSD capacity
- 2.5-inch form factor with ThinkSystem hot-swap tray
- SATA 6Gb/s interface
- Read-intensive workload classification
- Up to 97,000 random read IOPS
- Up to 31,000 random write IOPS
- Up to 560 MB/s sequential read
- Up to 530 MB/s sequential write
- 1 DWPD endurance for five years
- 3,504 TB total bytes written
- TCG Opal self-encrypting drive technology
- Samsung V6 128-layer TLC V-NAND
- Advanced ECC and End-to-End Data Protection
- Power-loss protection
- S.M.A.R.T. monitoring
- Dynamic Thermal Guard protection
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| SKU / Part Number | 4XB7A87526 |
| Product Family | ThinkSystem PM893a |
| Feature Code | BWKL |
| Vendor Part Number | MZ7L31T9HELA-00A07 / 00B07 |
| Drive Type | Solid State Drive (SSD) |
| Workload Type | Read Intensive |
| Capacity | 1.92TB |
| Form Factor | 2.5-inch |
| Tray | ThinkSystem Hot-Swap Tray |
| Interface | SATA 6Gb/s |
| NAND Technology | Samsung V6 128-Layer TLC V-NAND |
| SED Encryption | TCG Opal |
| Endurance | 1 DWPD for 5 Years |
| Total Bytes Written (TBW) | 3,504 TB |
| Random Read Performance | Up to 97,000 IOPS |
| Random Write Performance | Up to 31,000 IOPS |
| Sequential Read | Up to 560 MB/s |
| Sequential Write | Up to 530 MB/s |
| Random Read Latency | 120 Β΅s |
| Random Write Latency | 40 Β΅s |
| MTBF | 2,000,000 Hours |
| Data Reliability (UBER) | Less than 1 in 10ΒΉβ· bits read |
| Typical Power β Read | 2.2 W |
| Typical Power β Write | 3.2 W |
| Non-Operating Shock | 1,500 G Max at 0.5 ms |
| Non-Operating Vibration | 20 G (20β2000 Hz) |
| Drive Height | 7 mm |
| Drive Width | 70 mm |
| Drive Depth | 100 mm |
| Drive Weight | Approx. 70 g without hot-swap tray |
| Operating Temperature | 0Β°C to 70Β°C |
| Relative Humidity | 5% to 95% Noncondensing |
| Maximum Altitude | 3,050 m / 10,000 ft |
| Warranty | 1-Year CRU Limited Warranty |
| Product Status | Withdrawn from Marketing |
