Description

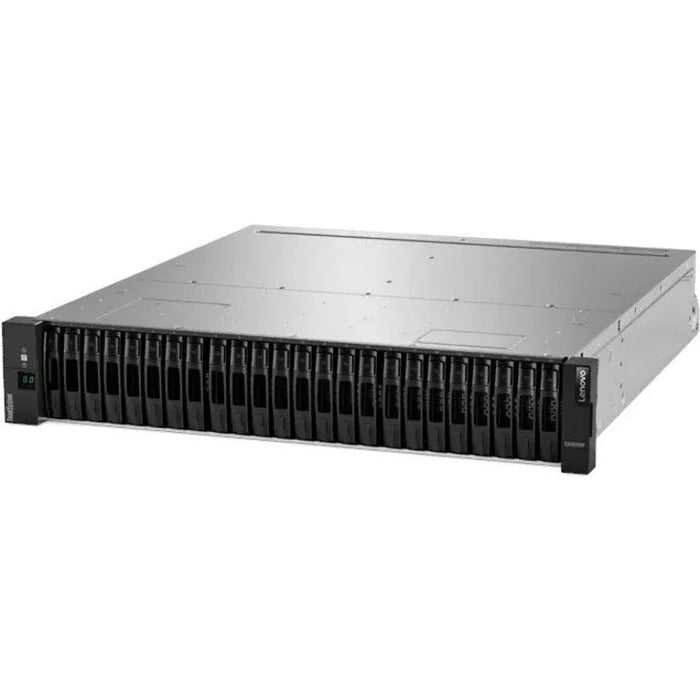

The Lenovo ThinkSystem DE6000F 7Y79A00GWW is a high-performance 2U24 all-flash storage array designed for demanding enterprise workloads requiring speed, availability, scalability, and advanced data management.

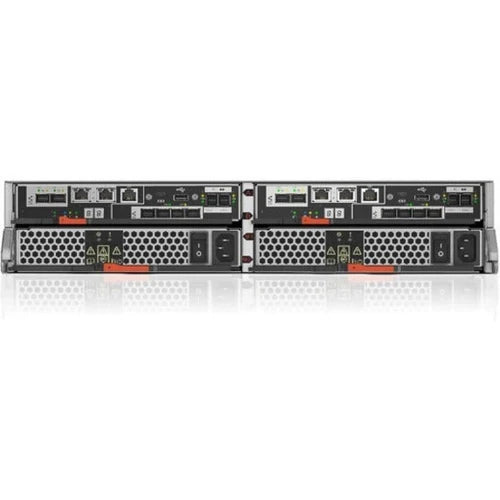

This preconfigured model features dual Gen2 DE6000 64GB controllers, providing 128GB of total system memory, along with two 32Gb Fibre Channel 4-port host interface cards for high-speed SAN connectivity. Its dual active-active controller architecture supports automatic load balancing and failover for enhanced availability.
The DE6000F accommodates up to 24 hot-swap 2.5-inch SAS SSDs in its base 2U enclosure and can scale to 120 drives with up to four ThinkSystem DE240S expansion enclosures, supporting up to 1.84PB of raw storage capacity.
Enterprise storage capabilities include Dynamic Disk Pools, multiple RAID levels, snapshots, thin provisioning, synchronous and asynchronous mirroring, data assurance, and web-based management. Redundant hot-swappable controllers, power supplies, and other components help deliver high availability for business-critical applications.
Key Features
- 2U rack-mount all-flash storage array
- 24 x 2.5-inch SFF hot-swap drive bays
- Dual Gen2 DE6000 64GB controllers
- 128GB total controller system memory
- Dual active-active controller architecture
- 2 x 32Gb FC 4-port host interface cards
- Up to 8 x 8/16/32Gb Fibre Channel host ports
- Supports 12Gb SAS SSD and FIPS SSD options
- Scalable to 120 drives with DE240S expansion enclosures
- Maximum raw storage capacity up to 1.84PB
- RAID 0, 1, 3, 5, 6, 10 and Dynamic Disk Pools
- Snapshots, thin provisioning, volume copy and data mirroring
- Redundant hot-swap 913W Platinum AC power supplies
- Web-based and command-line management options
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Family | ThinkSystem |
| Model | DE6000F |
| SKU / Part Number | 7Y79A00GWW |
| Product Type | All-Flash Storage Array |
| Market Availability | All Markets |
| Form Factor | 2U Rack Mount |
| Drive Form Factor | 2.5-inch SFF |
| Drive Bays | 24 Hot-Swap Bays |
| Maximum Drives | 120 with Expansion Enclosures |
| Supported Drive Technology | 12Gb SAS SSD, FIPS SSD |
| Controllers | 2 x Gen2 DE6000 Controllers |
| Controller Configuration | Dual Active-Active |
| Memory per Controller | 64GB |
| Total System Memory | 128GB |
| Included Host Interface Cards | 2 x 32Gb FC 4-Port HICs |
| Host Connectivity | 8/16/32Gb Fibre Channel |
| FC Host Ports | Up to 8 Ports |
| Expansion Connectivity | 12Gb SAS |
| Maximum Raw Capacity | Up to 1.84PB |
| RAID Support | RAID 0, 1, 3, 5, 6, 10 |
| Dynamic Disk Pools | Supported |
| Maximum Logical Volumes | 2,048 |
| Maximum Hosts | 512 |
| Maximum Snapshots | 2,048 |
| Management Port | 1GbE RJ-45 per Controller |
| Management Interfaces | System Manager GUI, SAN Manager, SSH CLI, Serial CLI |
| Security | SSL, SSH, RBAC, LDAP Authentication |
| Power Supplies | 2 x Redundant Hot-Swap 913W Platinum AC |
| Input Voltage | 100–240V AC |
| Height | 85 mm / 3.4 in |
| Width | 449 mm / 17.7 in |
| Depth | 553 mm / 21.8 in |
| Weight | 23.47 kg / 51.7 lb |
| Expansion Support | Up to 4 ThinkSystem DE240S 2U24 SFF Enclosures |
| Warranty | 3-Year Limited Warranty |
| Product Status | Withdrawn Product |
Included Components
| Included Item | Quantity / Details |
|---|---|
| 2U24 Chassis | 1 |
| Gen2 DE6000 64GB Controllers | 2 |
| 32Gb FC 4-Port HICs | 2 |
| Power Supplies | 2 |
| Rack Mount Kit | Included |
| USB Type-A to Micro-USB Cable | 2m Cable |
| Quick Installation Guide | Included |
| Electronic Publications Flyer | Included |
| Rack Power Cables | 2 |
Note: Optical transceivers, DAC cables, SAS cables, and storage drives may require separate purchase depending on the configuration.
