Description

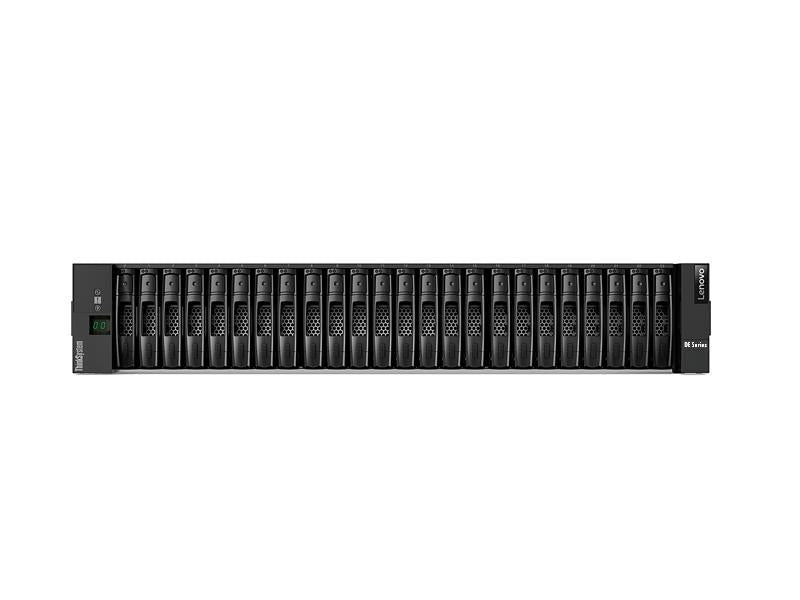

The Lenovo ThinkSystem DE4000H 7Y75100CNA is a scalable hybrid storage system designed for demanding business and enterprise workloads. Built in a compact 2U rack-mount form factor, it supports up to 24 2.5-inch HDDs or SSDs and features dual controllers for high availability and reliable storage performance.
The DE4000H provides 12Gb/s SAS host connectivity, flexible RAID protection, Gigabit Ethernet management connectivity, and enterprise storage management capabilities. Its flexible architecture makes it well suited for applications such as data analytics, backup and recovery, video surveillance, technical computing, and other storage I/O-intensive environments.
This configuration ships without drives, allowing organizations to select HDD or SSD capacity according to their performance and storage requirements.
Product Highlights
- 2U rack-mountable hybrid DAS/SAN storage system
- 24 x 2.5-inch SFF drive bays
- Supports up to 24 HDDs or SSDs
- Dual storage controllers
- 32GB controller cache configuration
- 12Gb/s SAS host connectivity
- 8 external SAS ports
- RAID 0, 1, 3, 5, 6, and 10 support
- Gigabit Ethernet management connectivity
- Redundant power supplies
- Designed for high availability and scalable enterprise storage
- Drives not included
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Line | ThinkSystem |
| Series | DE |
| Model | DE4000H |
| Manufacturer Part Number | 7Y75100CNA |
| Product Type | DAS/SAN Storage System |
| Form Factor | Rack-Mountable |
| Rack Height | 2U |
| Drive Form Factor | 2.5-inch SFF |
| Total Drive Bays | 24 |
| HDDs Supported | Up to 24 |
| HDDs Installed | 0 |
| SSDs Supported | Up to 24 |
| SSDs Installed | 0 |
| Number of Controllers | 2 |
| Controller Interface | 12Gb/s SAS |
| Controller Cache | 32GB |
| RAID Support | Yes |
| RAID Levels | RAID 0, 1, 3, 5, 6, 10 |
| Host Interface | 12Gb/s SAS |
| External SAS Ports | 8 |
| Ethernet | Gigabit Ethernet |
| RJ-45 Ports | 2 |
| USB Ports | 2 |
| Fibre Channel Support | Yes |
| Management Protocols | FCP, SSH, SMI-S, SNMP, SSL, LDAP |
| Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 913W |
| Height | 3.3 in |
| Width | 17.7 in |
| Depth | 21.8 in |
| Warranty | 3 Years |
