380/415V 3PH WYE 30A 60309 3P+N+G 6HR

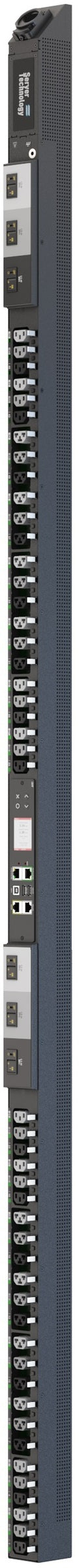

Server Technology PRO4X 48-Outlets PDU

Server Technology's PRO4X Switched PDUs run on our state-of-the-art Xerus network interface platform and provide remote access to power, PDU status, input and branch current monitoring, and outlet on/off control. The PDU features RamLock, a self-locking mechanism to prevent accidental cord disconnects, and our award-winning HDOT Cx outlets that can be deployed as either a C13 or C19. Switched PDUs are secured with strong configurable password, active directory, 256-bit AES encryption, SSH, SSL and HTTPS support. SNMP traps provide automated alerts on power and environmental conditions from Legrand's plug-and-play environmental monitoring sensors like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.

• HDOT Cx Outlets:


• Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.


• 45 Degree Angled Infeed:


• The angled infeed improves accessibility, provides infeed strain relief, and its bend radius is suitable with 60A rated cords.


• Network Monitoring:


• Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.


• Multi-Unit Linking & Cascading:


• Daisy chain up to 16 PDUs from a primary PDU using a USB or Ethernet connection through a single IP address.


• Multi-Color LCD:


• An easy-to-read LCD provides a local indication of power usage, alerts, and alarms.


• Hot Swappable Controller:


• The Controller is the PDU's center of intelligence and houses computing, display, and connectivity ports.


• Power Quality Measurements:


• Monitor and alert on the power being fed to the PDU for harmonics, voltage dips and swells, crest factor, and more at the outlet or load.


• RGB LED Outlet Indicators:


• RGB LEDs identify an outlet's on/off state, if it's above/below a certain power threshold, or if it's in suspect of a power measurement irregularity.


• Waveform Capture:


• Capture voltage and current waveforms automatically or upon demand.


• RamLock Locking Outlets:


• A mechanical locking mechanism built to secure the broadest range of C14 and C20 plugs in place.


• Environmental Monitoring:


• Support up to 12 daisy-chained DX2-series SmartSensors, each with the ability to send SNMP-based alerts and email notifications.


• Per-Inlet Power Sensing (PIPS®):


• Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.


• Branch Circuit Protection:


• This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetichydraulic circuit breakers or UL 248 fuses.


• Outlet Control:


• On Switched PDUs, cycle power to individual outlets or groups of outlets to reboot servers, or power off unused receptacles.


• Alternating-Phase Outlets:


• Evenly distributes multiple phases of power to each outlet for simplified load balancing, reduced cord lengths, and better airflow.


• High Temperature Rating:


• This product has been tested and approved for safe and reliable operation in 60°C data center environments.


• Flexible Mounting:


• Includes standard button mounts along with provisions for custom mounting brackets.


• Color-Coded Options:


• Select from six colors to designate PDU circuits in the data center - black, white, red, green, blue, and yellow.
