Description

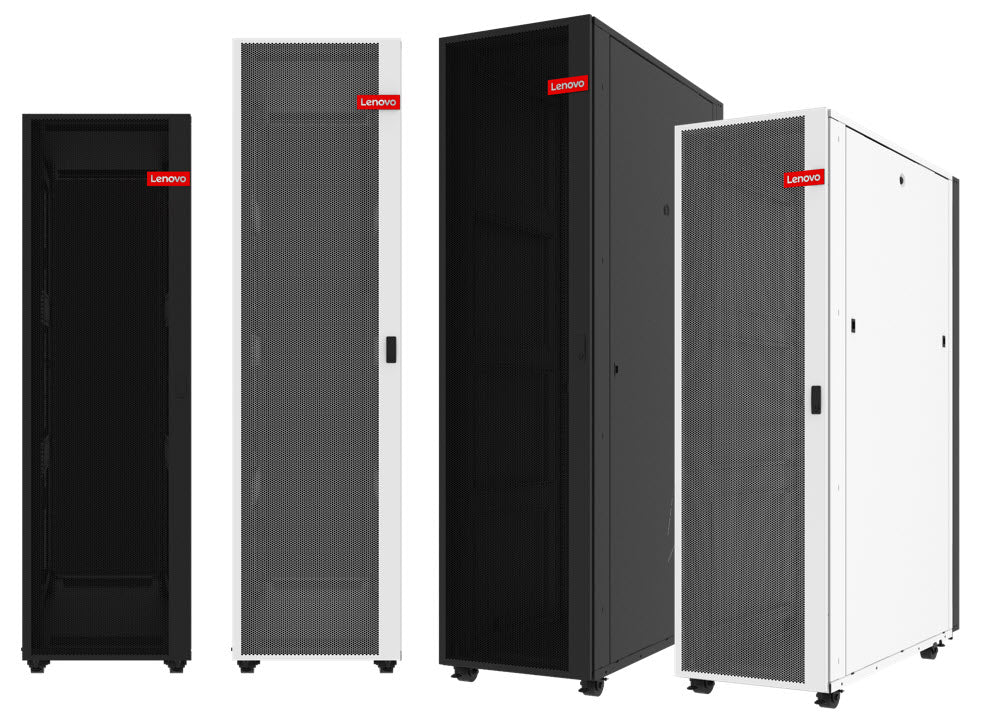

The Lenovo ThinkSystem 42U Onyx Expansion Heavy Duty Rack Cabinet (7D6D0001WW) is a high-capacity, enterprise-grade 19-inch rack designed for high-performance server, storage, HPC, and data center environments. This expansion model is supplied without side panels, making it ideal for installation alongside an existing rack cabinet in a multi-rack row configuration.
Built around a standard 600 mm × 1200 mm footprint, the 42U cabinet provides extensive configuration flexibility while supporting fully integrated equipment loads up to 1,588 kg (3,500 lb). Its heavy-duty frame, square-hole mounting rails, integrated stabilization features, and cable-management provisions help simplify deployment and serviceability in demanding infrastructure environments.
The cabinet supports optional front and rear rack extensions, 0U and 1U power distribution options, cable-management accessories, and Lenovo Neptune direct-water-cooling infrastructure. Lockable doors, adjustable leveling pads, and integrated outriggers further enhance equipment security and stability.
Key Features
- 42U EIA rack capacity
- Industry-standard 19-inch rack architecture
- Onyx black finish
- Expansion configuration without side panels
- 600 mm × 1200 mm standard footprint
- Up to 1,588 kg (3,500 lb) static/dynamic load capacity
- Square-hole equipment mounting
- Four 0U PDU mounting points
- Six sidewall compartments for 1U devices
- Optional front and rear rack extensions
- Support for Lenovo Neptune liquid-cooling solutions
- Integrated outriggers and adjustable leveling pads
- EIA-310-E compliant
- 3-year warranty
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Family | ThinkSystem |
| Product Type | Heavy Duty Rack Cabinet |
| SKU / Part Number | 7D6D0001WW |
| Model | 42U Onyx Expansion Heavy Duty Rack Cabinet |
| Configuration | Expansion Rack |
| Color | Onyx Black |
| Rack Capacity | 42U |
| Rack Standard | 19-inch, EIA-310-E |
| Mounting Hole Type | Square |
| Side Panels | Not included |
| Height | 2011 mm (79.2 in) |
| Width Without Outriggers | 600 mm (23.6 in) |
| Width With Outriggers | 770 mm (30.3 in) |
| Depth Without Extensions | 1200 mm (47.2 in) |
| Depth With One 180 mm Extension | 1380 mm (54.3 in) |
| Depth With Two 180 mm Extensions | 1560 mm (61.4 in) |
| Empty Expansion Rack Weight | 202 kg (445 lb) |
| Maximum Static/Dynamic Load | 1588 kg (3500 lb) |
| Sidewall Compartments | 6 |
| 0U PDU Mounting Points | 4 standard; up to 6 with rear extension |
| Rack Extensions | Optional front and rear |
| Rear Door Heat Exchanger Support | Yes |
| Lenovo Neptune Support | Yes |
| Ship Loadable | Yes |
| Stabilization | Integrated outriggers and adjustable leveling pads |
| Warranty | 3 Years |
