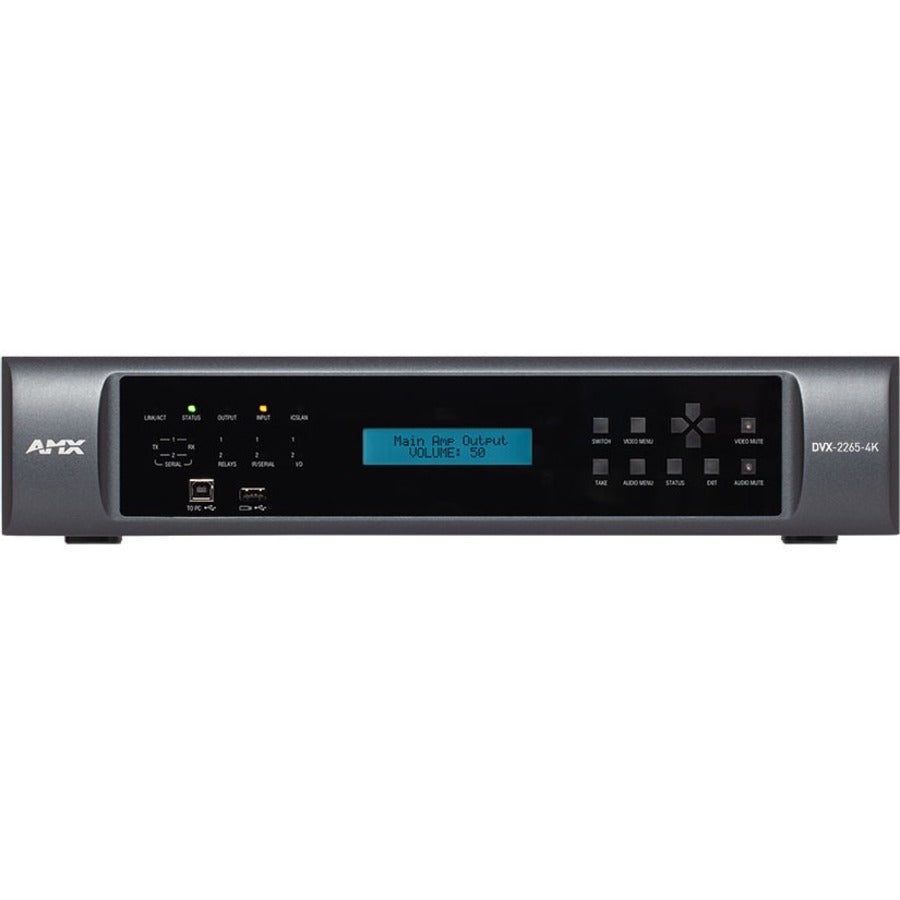

AMX 6x2+1 4K60 4:4:4 All-In-One Presentation Switcher

AMX 6x2+1 4K60 4:4:4 All-In-One Presentation Switcher
The DVX-2265-4K 6x2+1 All-In-One Presentation Switcher is a unified audio, video, and control device that replaces a rack full of equipment for a solution that is less expensive, easier to install, and more reliable.

The compact 2U Presentation Switcher supports the latest video technologies to deliver full 4K60 4:4:4 and HDR video on every output. Audio technology from Crown, BSS, and dbx provide the legendary audio quality for which Harman products are known and the inclusion of Dante audio makes it possible to distribute that audio over the network.

The integrated NX processor provides extensive security features and technologies such as a mobile friendly HTML5 web interface, an ICSLan isolated network, and automatic binding of DXLink endpoints.

DVX 4K60 delivers the lowest Total Cost of Ownership in the industry thanks to ease of support, maintenance, and configuration as well as reduced hardware and cabling costs.

Common Applications
The DVX-2265-4K is ideal for dramatically simplifying AV control and distribution in small to medium-sized conference rooms, boardrooms, and classrooms that can benefit from 4K60 4:4:4 resolution. It's small size and variety of flexible inputs and outputs also make it great for any complex collaboration space with multiple displays, rooms that require support for video conferencing, or any room or facility with space constraints, especially those that lack space in equipment racks.

Features

•
  4K60 4:4:4 Support - HDMI 2.0 and HDCP 2.2 Support - Scaled Outputs - Supports the highest possible video quality over HDMI and category cable.
•
  High Dynamic Range (HDR) and Deep Color Support - Support for HDR10 and 36-bit Deep Color.
•
  Simple Configuration and Support - HTML5 Web Interface with built-in status and troubleshooting features alleviates the need for proprietary configuration software and internal network allows for automatic configuration of endpoints
•
  Dante Audio - 8 input channels and 8 output channels of IP audio
•
  Crown DriveCore Amplifier - 120W per channel stereo at 4/8 ohms or 120W mono at 70/100 Volt.
•
  USB 2.0 - High-speed USB 2.0 data from devices like conferencing cameras and storage devices are transmitted without the need for separate cables.
•
  DXLink™ Twisted Pair Inputs and Outputs - Send and receive audio, video, bi-directional control, USB 2.0, and Ethernet to DXLink HDMI Receivers and Transmitters up to 100m away over one twisted pair cable.
•
  All-In-One Device - Controller, matrix switcher, video scaler, audio signal processor, amplifier, plus twisted pair distribution - all in a space-saving 2U chassis.

• Quickly switches both video and audio between sources without physical access


• A great solution for connecting display


• 4096 x 2160 resolution for high-quality video delivery
