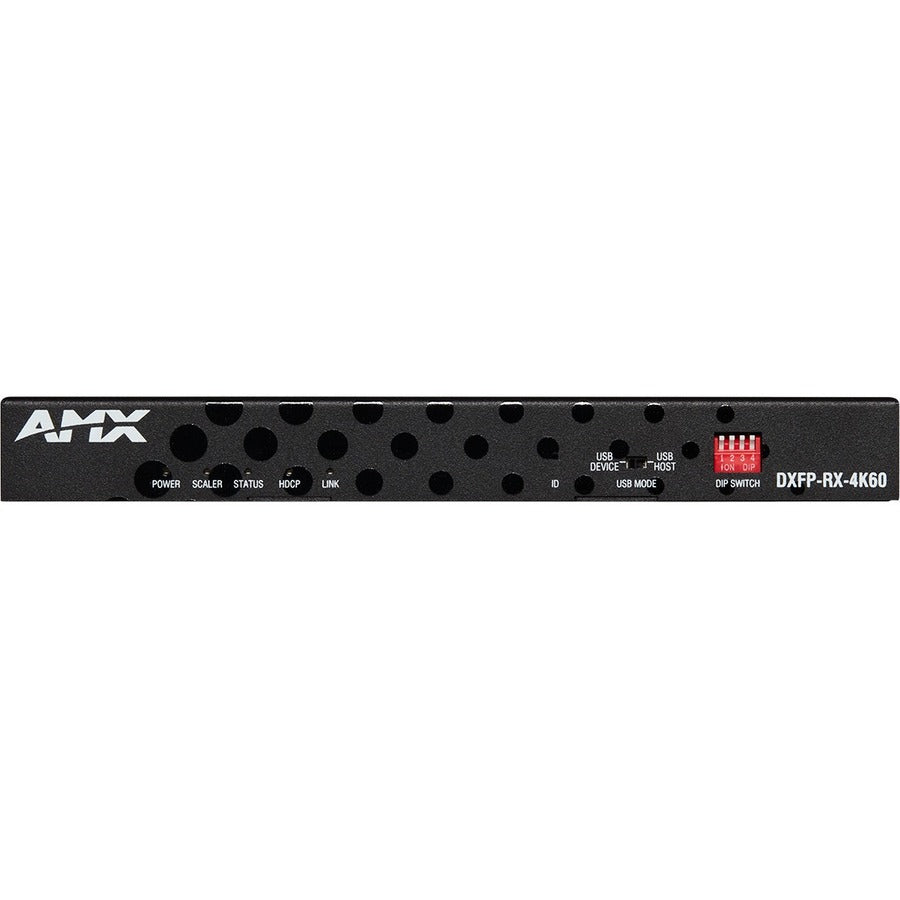

AMX DXLink 4K60 HDMI Fiber Receiver Module

AMX DXLink 4K60 HDMI Fiber Receiver Module

The DXLink 4K60 Fiber Receiver is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for pixel-for-pixel image reproduction without chroma subsampling. It receives audio, video, control, USB 2.0, and Ethernet over duplex fiber from a DXLink 4K60 Fiber transmitter up to 550 meters away. This module includes a Multi-Mode Duplex (MMD) SFP+ module, which can be replaced with a Single-Mode Duplex (SMD) SFP+ module if needed.

Common Applications
Fiber uses light to distribute data, rather than electric signals making it both the highest quality and most secure way to route video as it is not susceptible to electronic noise or non-intrusive physical wiretapping. This module is compatible with DGX DXLink 4K60 Fiber output cards and DXLink 4K60 Fiber transmitters. It is ideal for applications where the demands of high-resolution video clarity, long distance transmission, and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums

Features

• 4K@60Hz 4:4:4 8bit and HDCP 2.2 with Display Stream Compression (DSC) - Visually lossless compression and future-proof support.
• Only one cable - Receive audio, video, control, USB 2.0, and Ethernet over one optical cable up to 300m for OM3 and 550m for OM4
• Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10 Gbps
• SmartScale Technology - Works to automatically recognize any device's supported resolutionsand signal type parameters, allowing switching out source and devices without manual setup. Also included is the ability to control detailed timing parameters for customized video output formats. (SmartScale is the ability to configure the scaling output by automatically selecting destination defined resolution)
• Native NetLinx Contorl Everwhere - Control Connected devices using a built-in IR and RS232 ports.
• USB 2.0 Pass-Through - Extend USB 2.0 signal up to 550 meters.
