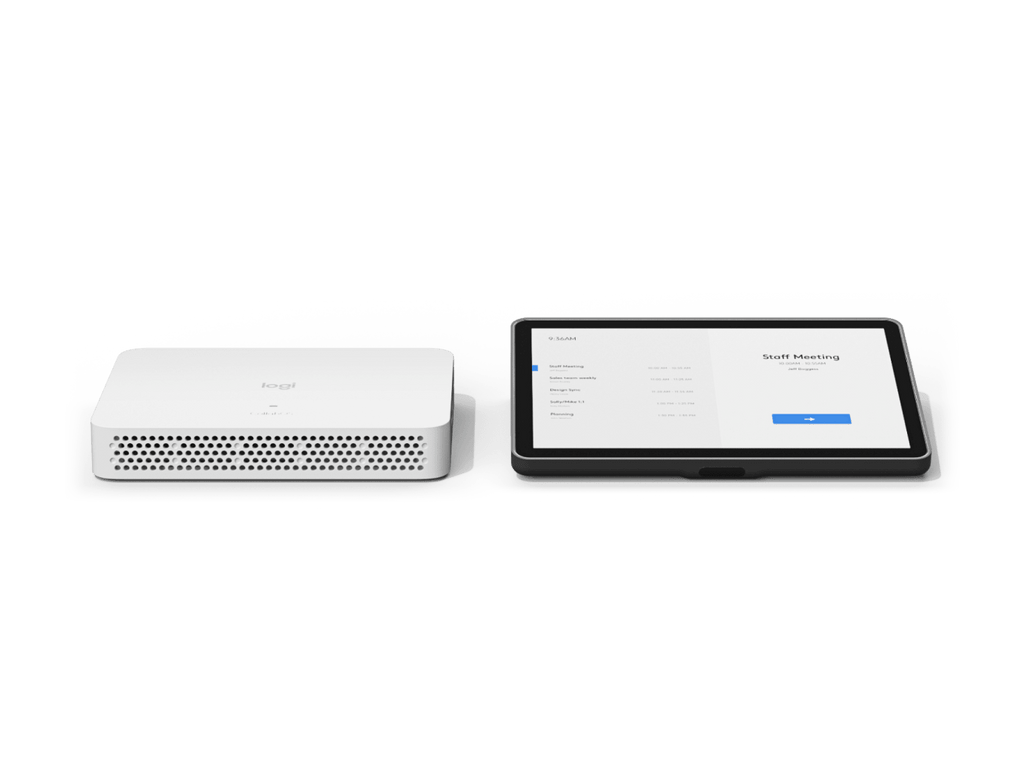

Logitech RoomMate + Tap IP + Compute Mount

Upgrade an existing room from PC to Appliance mode by adding RoomMate. Leverage a Logitech MeetUp, Rally, or Rally Plus with RoomMate + Tap IP to make any room a complete appliance-based solution.

• DIMENSIONS

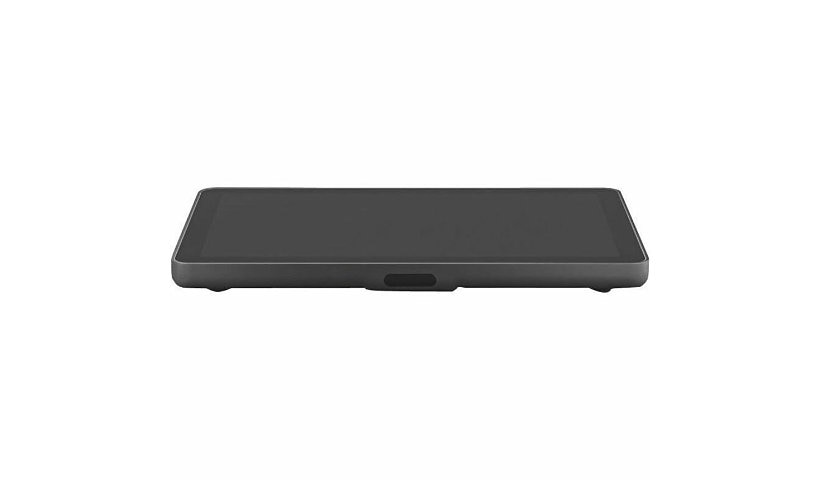

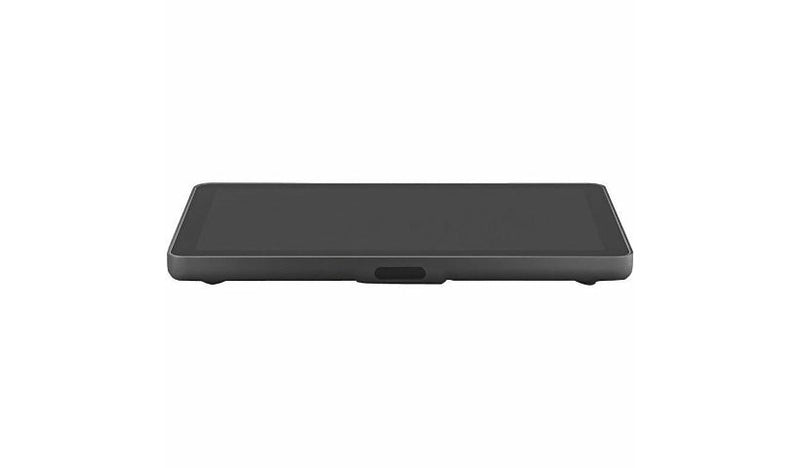

  Tap IP

  • Height: 2.21 in (56.1 mm)
  • Width: 9.69 in (246.2 mm)
  • Depth: 6.74 in (171.3 mm)
  • Weight: 2.2 lbs (1.0 kg)

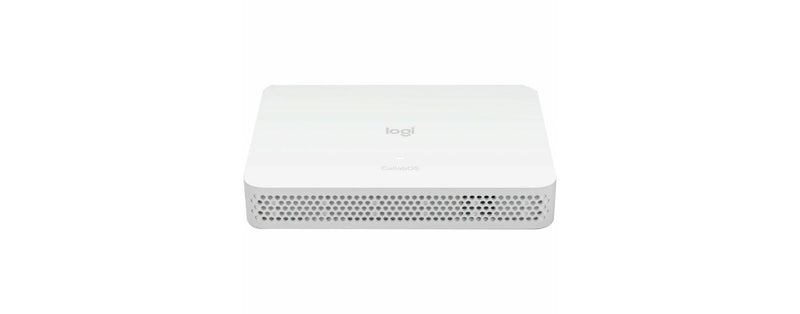

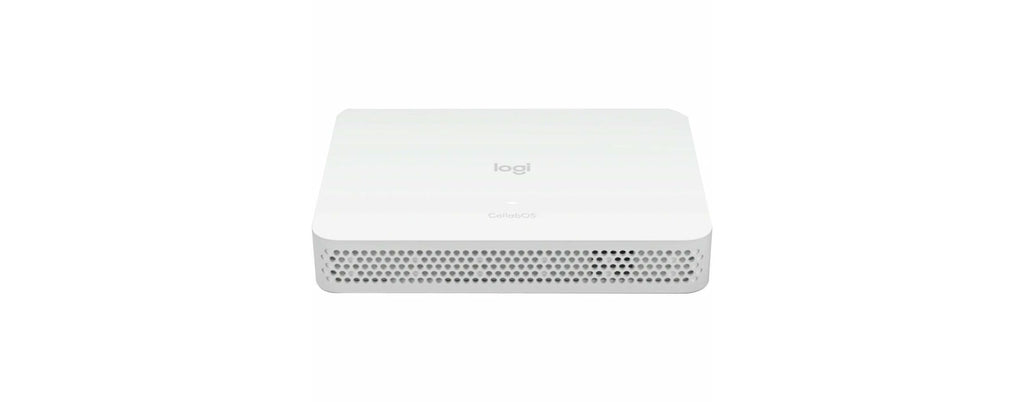

  RoomMate

  • Height: 1.36 in (34.5 mm)
  • Width: 6.34 in (161 mm)
  • Depth: 8.31 in (211 mm)

  Compute Mount

  • Height: 1.38 in (35 mm)
  • Width: 6.46 in (164 mm)
  • Depth: 13.78 in (350 mm)

• TECHNICAL SPECIFICATIONS

  General Specifications

  • Tap IP
    • Touch Screen: 10.12 in (257 mm) diagonal screen with 14° display angle
    • Resolution: 1280 x 800
    • Cabling: Power over Ethernet (PoE) cable (not included), IEEE 802.3af Type 1, Class 3 device
    • Cable Management: Internal cable retention and strain relief system
    • Ethernet: 10/100 Mbps
    • Wi-Fi: 802.11a/b/g/n/ac
    • Device Management: Logitech Sync
    • Color: Graphite
    • Mounting: 3.94 x 3.94in (100 x 100 mm) VESA FDMI
  • RoomMate
    • Operating System: Logitech CollabOS 1.4 or higher
    • Device Management: Logitech Sync and supported device management platforms
    • Certified Hardware: Logitech MeetUp, RallyCamera, Rally System, Rally Plus System, Tap, Tap IP
    • Verified Hardware: Biamp TesiraFORTÉ X 400, QSCQ-SYS Core 8 Flex, Shure IntelliMix P300. For latest information on compatible products, contact yourpreferred partner
    • Network Protocol Support: IPv4, IPv6
    • Proxy Support: IP based Proxy, FQDN based Proxy,Proxy using PAC file
    • Interfaces
      • HDMI Out: 2
      • HDMI In: 1
      • MAC: 3x Type A
    • Network: 10/100/1G Ethernet
    • WiFi: 802.11a/b/g/n/ac
    • Operating Voltage/Power: 100-240V, 19V, 4.74A
    • Full Disk Encryption: AES-128
    • Data Encryption: Symmetric Keys, PKI
    • Device Identity: Protected by device attestation
    • Device Access: Authenticated using API
    • Key Protection: Arm TrustZone, RPMP
    • Device Security: Kensington Lock
    • Color: White
  • Compute Mount
    • Fits Logitech RoomMate and other compute devices with 100x100 or 75x75 VESA pattern

  Certifications & Compatibility

  • Appliance Mode
    • Supports compatible video conferencing software including
      • Microsoft Teams Rooms on Android
      • Zoom Rooms
      • RingCentral Meetings Rooms
    • Contact Logitech or see https://prosupport.logi.com/hc/articles/1500001344641 for availability information and additional video conferencing platforms.
  • Certifications
    • All components included in the room solution bundle are certified for
      • Zoom Rooms
      • Microsoft Teams on Android
      • RingCentral Meetings Rooms
    • Contact the manufacturer for additional information on pending and granted certifications.


  • Verified Hardware
    • Biamp TesiraFORTÉ X 400
    • QSC Q-SYS Core 8 Flex
    • Shure IntelliMix P300
    • For latest information on compatible products, contact your preferred partner.
