NEC LED-FA009I2-165IN | 165" FA Series UHD LED kit (includes installation)

NECSKU: LED-FA009I2-165IN
LG Authorized exclamation What makes this a Top Quality Store?

Stores earn Google’s Top Quality Store badge by offering a positive experience for customers. This may include the offer of fast shipping and easy returns, positive user ratings, and other factors. Learn more


Price:
Sale price$244,999.00

Shipping calculated at checkout

Stock:
In stock

Estimate shipping

Description

  • 165” diagonal screen size
  • UHD (3840x2160) resolution with a refresh rate of >= 3840 Hz

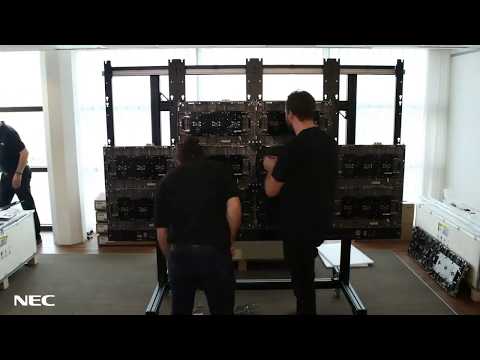

  • Kit includes everything needed for an LED installation including the LED modules, power bar, dual controllers, mounting structure, overframe kit as well as spare parts and a pixel card removal tool
  • Built in data and power redundancy ensuring the display remains operational in the event of a single controller of power supply failure

Display

Panel Technology Direct View LED Aspect Ratio 16:9
Native Resolution 3840x2160 Module Resolution 640 x 360
Pixel Configuration 4-1 SMD (Black) Pixel Pitch 0.95 mm
Brightness (typical) 600 cd/m2 Brightness (maximum) 660 cd/m2
Contrast Ratio (typical) 5000:1 Viewing Angle (typical) 70/70 horizontal / 70/70 vertical
Refresh Rate Up to 3840 Hz Active Screen Area 143.4 x 81 in. / 3648 x 2052 mm
Orientation Landscape Dimming Capability 256 levels
Color Processing Up to 16 bit Displayable Colors 281 Trillion
Color Temperature (Max) (°K) 3000 Color Temperature (Typical) (°K) 6500
Color Temperature (Min) (°K) 9500 Gamma (Max) 4.0
Gamma (Typical) 2.8 Gamma (Min) 1.0
Lifetime 100,000 hours

Signal Compatibility/Connectivity

External Control 1 x GenLock; 1 x LAN Input Terminals
Digital:
1 x 3G SDI; 1 x DVI-D; 1 x HDMI

Power Consumption (typical)

On 2700Watts Power Consumption (max) 5040 Watts

Physical Specifications

Dimensions (WxHxD)
Without stand:
143.4 x 85.5 x 3.2 in. / 3648 x 2172 x 81 mm
Weight
Net Weight (without stand):
698.4 lbs. / 316.8 kg.
Shipping:
974.5 lbs / 442 kg
Servicability:
Front Service
IP Level:
IP20
Certifications:
  • CCC
  • CE
  • ETL
  • FCC Class A
  • RoHS

Environmental Conditions

Operating Temperature -4° to 104°F / -20° to 40°C Operating Humidity 10% to 80%
Storage Temperature -4° to 113°F / -20° to 45°C Storage Humidity 10% to 85%
Environment Indoor

Limited Warranty (parts & labor)

3 years

Accessories

Included
  • Controller
  • Mounting Frame
  • Ambient Light Sensor
Optional
  • Power Box with remote On/Off Control
  • Control PC 19" Rack
  • See NEC Representative for additional accessories
