QNAP 2U 8-BAY NAS/ISCSI 4GB DDR4 RAM

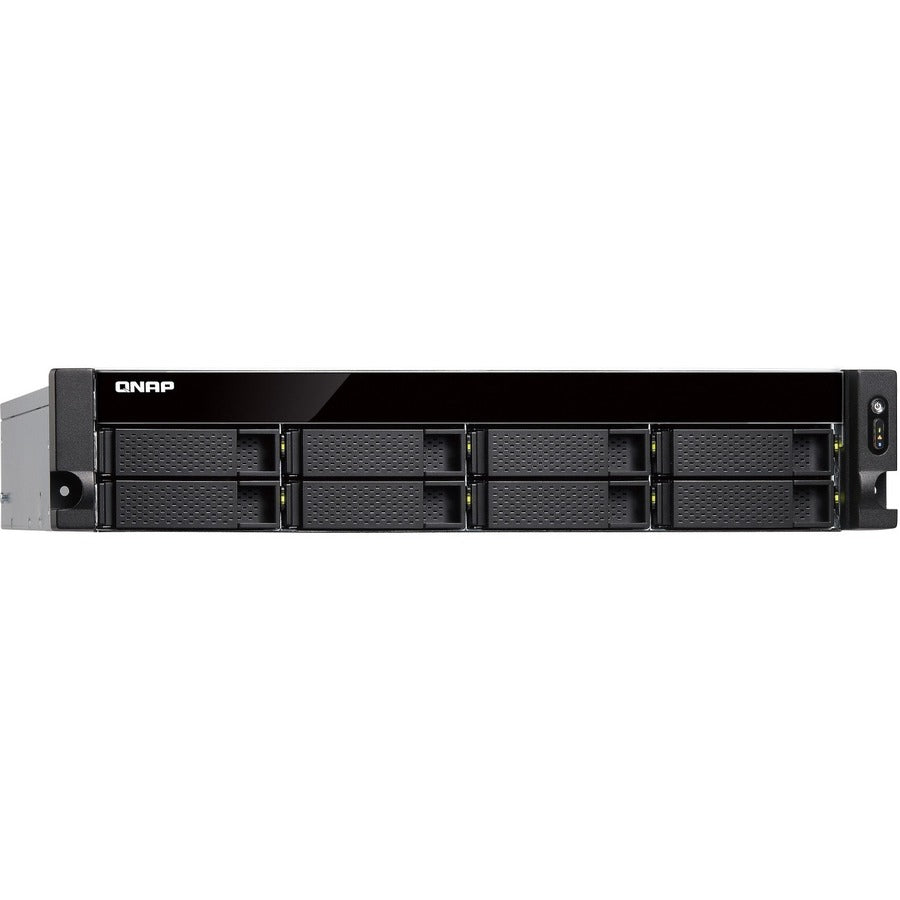

QNAP TS-877XU-1200-4G SAN/NAS Storage System

Ryzen™-based rackmount NAS with up to 4 cores/4 threads and integrated dual 10GbE SFP+ ports to optimize system performance

Powered by AMD's powerful Ryzen™ processor, the TS-877XU is capable of boosting virtual machine performance with up to 4 cores/4 threads and Turbo Core up to 3.4 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-877XU.

Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.1 Gen 2 (10Gbps) cards, or wireless network cards.
Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance

Top-class hardware engineering with high I/O expandability

The hardware design of the TS-877XU provides exceptional system performance and expandability to fulfill diverse application requirements.

Absolute performance with AMD Ryzen™ and up to 64GB RAM

Powered by a high-performance AMD Ryzen™ 3 1200 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-877XU delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-877XU.

Dual-channel Memory to deliver power-smart performance

The TS-877XU supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules, the TS-877XU can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-877XU, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.

Extend NAS functionality with PCIe slots

The TS-877XU features four PCIe slots that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.

10GbE/ 40GbE adapters

Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.QM2 card with M.2 SSD/10GbE support

QM2 card with M.2 SSD/10GbE support

Install QNAP's innovative QM2 card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

Wireless network cards

Install QNAP's wireless network card (QWA-AC2600) to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

• SAN/NAS Storage System offers maximum storage efficiency and convenience


• Holds up to 8 HDDs to let you expand limitlessly


• Through RAID levels (0, 1, 5, 6, 10, 50, 60, hot spare, jbod), RAID provides data reliability, fault tolerance and improves overall performance


• DDR4 SDRAM memory technology for fast, easy, and convenient access and retrieval of data and information


• Perform computational tasks effectively accrediting the amd ryzen 3 3.10 ghz processor


• RAID technology - data reliability, fault tolerance and improved overall performance


• Rack-mountable san/nas storage system allows a clutter-free, convenient usage with increased efficiency


• Optimize business network's performance with 10 Gigabit Ethernet connectivity


• It's qts 4.3.4 operating system offers powerful platform to efficiently run routine applications
