QNAP 2U 8-BAY SHORT DEPTH 12 RACKMOUNT NAS, INTEL

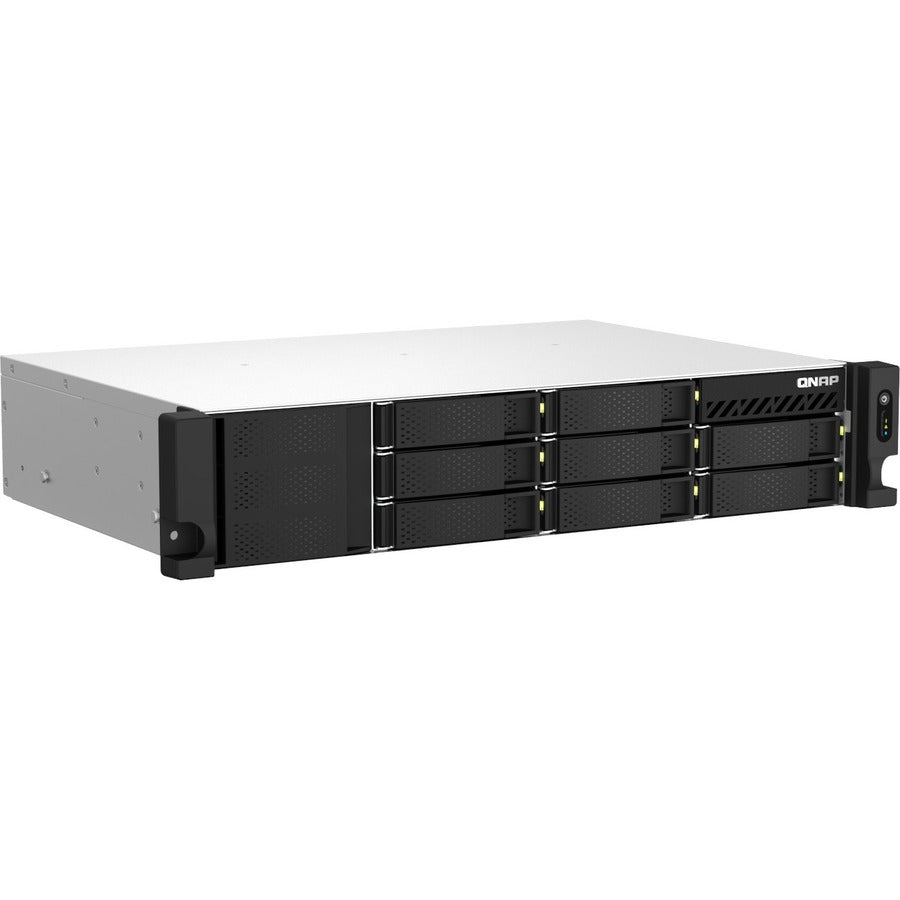

QNAP TS-864EU-4G SAN/NAS Storage System

The TS-864eU is powered by Intel® Celeron® N5095/5105 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-864eU surpasses the previous generation.

•
  2.5GbE connectivity

  Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.

•
  HDMI Output

  Supports 4K media playback and real-time transcoding.

•
  PCIe expandability

  One PCIe slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or USB 3.2 Gen 2 (10Gbps) expansion cards.

•
  USB interface

  Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.

•
  Backup and data recovery

  Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.

•
  Hybrid cloud applications

  Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.

Quad-core Processor, burst up to 2.9 GHz with Memory Upgradable to 8 GB

The TS-864eU is powered by Intel® Celeron® N5095/N5105 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel® AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.

Build a High-Speed 2.5GbE Network Environment

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

•
  A fast 2.5GbE NAS

  A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

•
  Upgrade computers and servers

  Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

•
  Add a 5GbE port to laptops

  Laptops and upgrade-limited computers can use QNAP's portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.

•
  A switch that supports 2.5GbE+

  QNAP's 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

• SAN/NAS Storage System offers maximum storage efficiency and convenience


• Robust scalability up to 8 drives to let you expand limitlessly


• Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance


• DDR4 SDRAM memory technology for desired storage efficiency with accuracy and precision


• Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor


• RAID technology - data reliability, fault tolerance and improved overall performance


• Rack-mountable san/nas storage system allows maximum space utilization with easy and convenient access and retrieval of the data


• 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity


• QTS 5.0.0 OS makes you more productive and creative
