QNAP High-performance Ryzen NAS for AI-oriented Big Data Storage

QNAP High-performance Ryzen NAS for AI-oriented Big Data Storage

Ryzen™ NAS with graphics processing to facilitate AI-oriented tasks

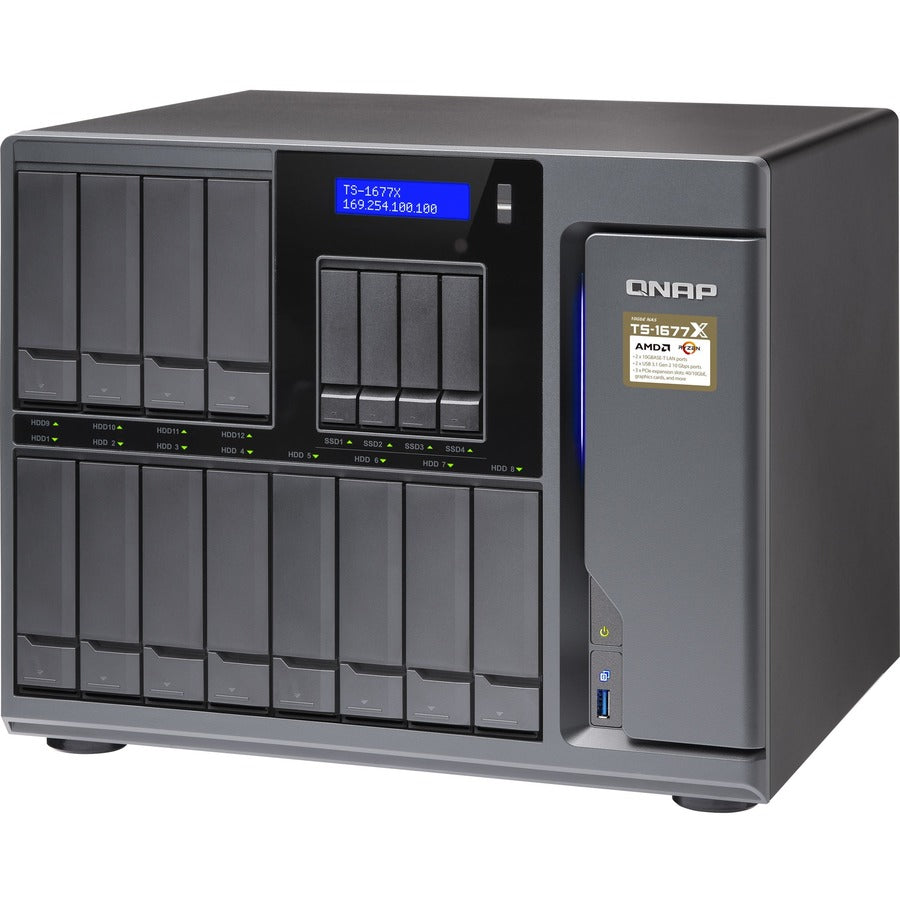

The giant TS-1677X is powered by an AMD Ryzen™ processor with up to 8 cores/16 threads. When used with a high-end graphics card, the TS-1677X delivers incredible computing performance to empower data-intensive machine learning applications. The AMD Ryzen™ processor, with Turbo Core of up to 3.7 GHz, can greatly boost virtual machine performance.

• PCIe expandability allows for graphics cards, 10GbE/40GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards.

• Supports AMD Radeon™ and NVIDIA® graphics cards for AI-computing, video processing or GPU-passthrough to VMs.

• Dual 10GBASE-T (RJ45) ports accelerate virtualization applications and high-resolution video editing and sharing.

• Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

• Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

• RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance.

GPU-accelerated NAS for AI machine learning

The TS-1677X provides cutting-edge capabilities to help organizations develop cost-efficient AI-oriented big data storage solutions. Combined with a high-end graphics card, SSD caching, and QNAP's "QuAI" AI developer package, the vast data stored on the TS-1677X can be leveraged to quickly build, train, and optimize AI model-based services, beneficial for exploring intelligent services and greater business value.

Absolute performance with AMD Ryzen™ and up to 64GB RAM

Powered by a high-performance multi-core AMD Ryzen™ processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-1677X delivers aggressive yet power-smart performance to meet your multitasking demands, including running multiple virtual machines simultaneously. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-1677X.

Top-class hardware engineering with high I/O expandability

The exceptional hardware of the TS-1677X bolsters overall system performance. Coupled with the flexible and expandable architecture, the TS-1677X fulfills diversified application needs.

Built-in dual 10GbE 10GBASE-T ports

The TS-1677X offers not only four Gigabit Ethernet ports but also two 10GBASE-T RJ45 ports to fully support 10GbE high-speed networks and accelerate applications such as virtualization and on-the-fly video editing. The 10GBASE-T RJ45 ports also support 10G/5G/2.5G/1G/100M speeds to fulfill various bandwidth demands.

Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch!

QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows®/Linux® PCs to take advantage of high-speed LAN environments.

Extend NAS functionality with PCIe slots

The TS-1677X features three PCIe slots (1 x PCIe 3.0 x8, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x4) that allow for installing various expansion cards to increase application potential.

• SAN/NAS Storage System is the single answer to all your desired storage needs


• Holds up to 12 HDDs to let you expand limitlessly


• Through RAID levels (0, 1, 5, 6, 10, 50, 60, hot spare, jbod), RAID provides data reliability, fault tolerance and improves overall performance


• DDR4 SDRAM memory technology for desired storage efficiency with accuracy and precision


• Ryzen 5 3.20 GHz processor for performing computational tasks effectively


• RAID technology - data reliability, fault tolerance and improved overall performance


• Tower form factor is ideal for running internal applications, serving public websites or storing sensitive customer data with maximum productivity


• Optimize business network's performance with 10 Gigabit Ethernet connectivity


• It's qts 4.3.4 operating system offers powerful platform to efficiently run routine applications
