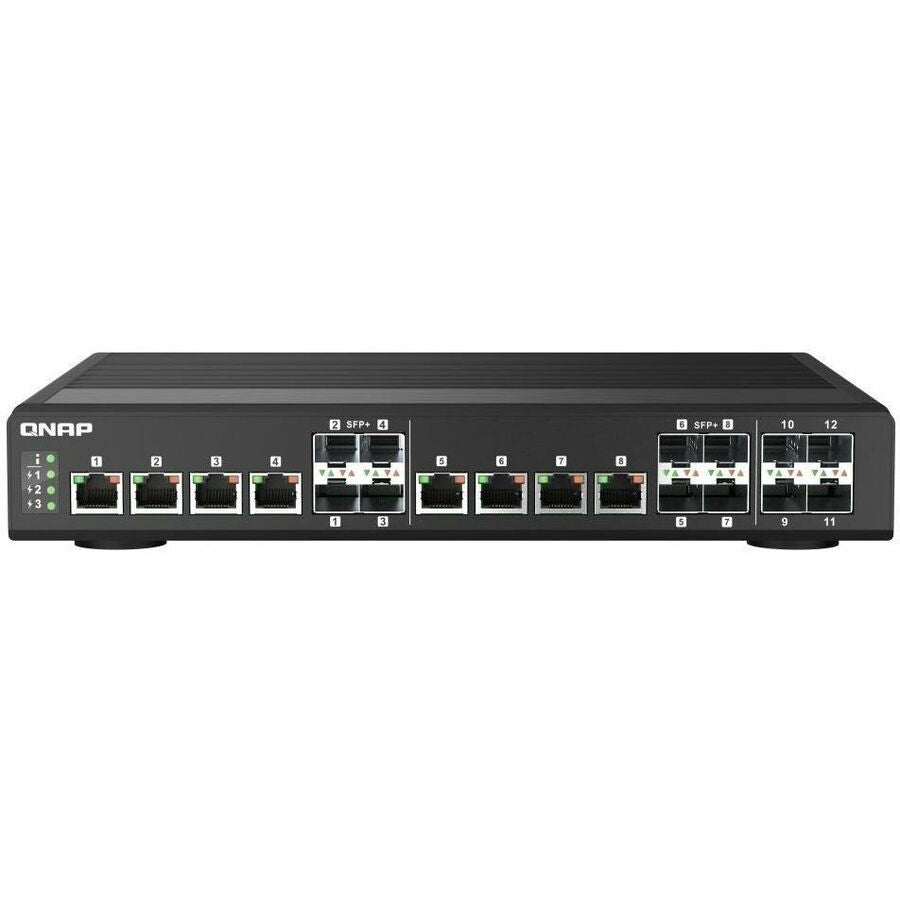

QNAP QSW-IM1200-8C-US Ethernet Switch

QNAP QSW-IM1200-8C-US Ethernet Switch

Industrial-grade hardened hardware design

The QSW-IM1200-8C features an IP20-rated metal case, providing protection in rugged and industrial environments. Adopting a fanless design with ventilated construction, the QSW-IM1200-8C can operate in temperatures of -30 ~ 65° Celsius in airy environments (0.5~0.7m/s ) or -30 ~ 45° Celsius in enclosed space.

Flexible deployment combo ports and 10GbE / NBASE-T

The 12-port QSW-IM1200-8C switch includes four SFP+ (fiber) ports, and eight SFP+/RJ45 (copper) combo ports for connecting different interfaces. With RJ45 interfaces, 10GbE is supported using Cat 6a (or above) cables. Direct Attach Copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-M1208-8C is 240 Gbps, guaranteeing the full potential of each port. The QSW-IM1200-8C is also compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

Redundant DC power for reliable operations in variable environments

The QSW-IM1200-8C has three redundant DC power input supplies and a circuit breaker to protect the electrical circuits from potential overvoltage in factories. The QSW-IM1200-8C ensures an uninterrupted power supply in constant-motion factories and outdoor environments with varying power supplies.

Fully embrace Industrial High-Speed Networking with QNAP!

From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters for Mac®, Windows® or Industrial computers (IPC). These can all be used with the QSW-IM1200-8C to boost the performance of virtualization, surveillance, 3D printing, large-file data transfers, and other bandwidth-demanding tasks in industrial high-speed network environments.

QSS: Intuitive Network Management Software

The QNAP Switch System (QSS) features an easy-to-use Web GUI with value-added functions to simplify network set up and management.

Sleek DesignUse the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.

GUIThe visual illustration matches physical ports for greater usability.

Value-addedWith the settings guide, status chart reference, online firmware update, learning and management costs are greatly reduced.

QSS: Human-centered settings guide

QSS provides an overview dashboard, port management and settings guide to help users control Layer 2 networks.

Optimize Network Performance with bandwidth and packet control

The QSW-IM1200-8C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

• LACP


Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure.

• VLAN


Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network.

• QoS


QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation.

• IGMP Snooping


IGMP snooping assists in minimizing bandwidth loss and preventing netwo

• Effectively reduces downtime with improved network performance


• Quickly and easily set up a wired network with 8 networking ports


• DC power source for required power supply to ensure maximum efficiency


• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree


• Rack mounting enables you to organize wires & secure cables for professional installation


• Management capability allows maximum efficiency and with unrestricted control


• Optimize the performance of business networks with 10 Gigabit Ethernet connectivity


• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
