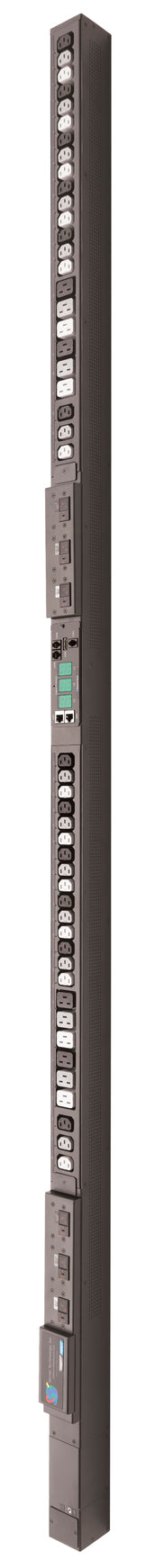

Server Technology Smart POPS 48-Outlets PDU

Server Technology Smart POPS 48-Outlets PDU

The Server Technology® PRO2 Smart POPS PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Smart POPS "Primary" PDU can be connected to as many as three (with optional module) PRO2 Smart POPS "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

• : Select from six colors to designate PDU circuits in the data center - black, white, red, green, blue, and yellow.


• Color-Coded Options


• Includes standard button mounts along with provisions for custom mounting brackets.


• Flexible Mounting:


• High Temperature Rating:


• This product has been tested and approved for safe and reliable operation in 60 °C data center environments.


• Alternating-Phase Outlets:


• Evenly distributes multiple phases of power to each outlet for simplified load balancing, reduced cord lengths, and better airflow.


• : This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetichydraulic circuit breakers or UL 248 fuses.


• Branch Circuit Protection


• : Monitors current at each breaker branch and provides SNMPbased alerts and emails on high usage that risks a tripped circuit.


• Branch Current Monitoring


• : POPS® (Per Outlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, and Energy per outlet.


• Per-Outlet Power Sensing


• PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.


• Per-Inlet Power Sensing:


• Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in highdensity cabinets.


• Auto-Flip Current Display:


• : Web, SSH, Telnet, SNMPv2c & v3, RS-232 serial, 10/100 Base T-Ethernet, LDAP(S), TACACS+, RADIUS, DHCP, & SMTP/email.


• IP Access , Security & Communications


• Primary and Expansion (select products) units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.


• Temperature/Humidity Monitoring:


• : PRO2 provides the ability to link up to four power circuits using one IP address. Primary Expansion PDU provides backup power to network card.


• Star Multi-Linking


• Hot-Swap Network Card:


• Network access is ensured when power is lost to the Primary unit with backup power provided by the Linked unit.


• Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.


• Network Monitoring:


• HDOT Cx Outlets:


• Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.
