SMART PRO4X IX PDU, 36 RAMLOCK HDOT OUTLETS (12 C13 + 24 CX), 208V 30A (24A RATE

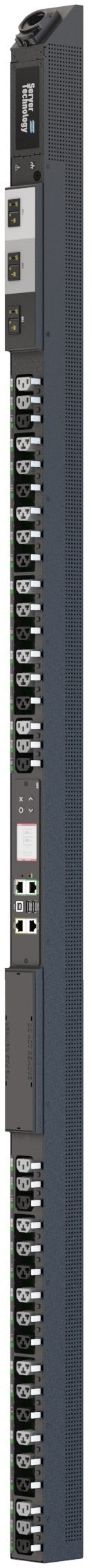

Server Technology PRO4X 36-Outlets PDU

Server Technology's PRO4X Smart PDUs run on our state-of-the-art Xerus network interface platform and provide remote access to power, PDU status, input and branch current monitoring. The PDU features RamLock, a self-locking mechanism to prevent accidental cord disconnects, and our award-winning HDOT Cx outlets that can be deployed as either a C13 or C19. Smart PDUs are secured with strong configurable password, active directory, 256-bit AES encryption, SSH, SSL and HTTPS support. SNMP traps provide automated alerts on power and environmental conditions from Legrand's plug-and-play environmental monitoring sensors like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.

• HDOT CX OUTLETS:


• Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.


• 45 DEGREE ANGLED INFEED:


• The angled infeed improves accessibility, provides infeed strain relief, and its bend radius is suitable with 60A rated cords.


• NETWORK MONITORING:


• Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.


• MULTI-UNIT LINKING & CASCADING:


• Daisy chain up to 16 PDUs from a primary PDU using a USB or Ethernet connection through a single IP address.


• MULTI-COLOR LCD:


• An easy-to-read LCD provides a local indication of power usage, alerts, and alarms.


• HOT SWAPPABLE CONTROLLER:


• The Controller is the PDU's center of intelligence and houses computing, display, and connectivity ports.


• POWER QUALITY MEASUREMENTS:


• Monitor and alert on the power being fed to the PDU for harmonics, voltage dips and swells, crest factor, and more at the outlet or load.


• RGB LED OUTLET INDICATORS:


• RGB LEDs identify an outlet's on/off state, if it's above/below a certain power threshold, or if it's in suspect of a power measurement irregularity.


• WAVEFORM CAPTURE:


• Capture voltage and current waveforms automatically or upon demand.


• ENVIRONMENTAL MONITORING:


• Support up to 12 daisy chained DX2-series SmartSensors, each with the ability to send SNMP-based alerts and email notifications.


• PER-INLET POWER SENSING:


• PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.


• BRANCH CIRCUIT PROTECTION:


• This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.


• ALTERNATING-PHASE OUTLETS:


• Evenly distributes multiple phases of power to each outlet for simplified load balancing, reduced cord lengths, and better airflow.


• HIGH TEMPERATURE RATING:


• This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
