The Vm3200 Modular Matrix Switch Offers Advanced Access And Real-Time Control Of

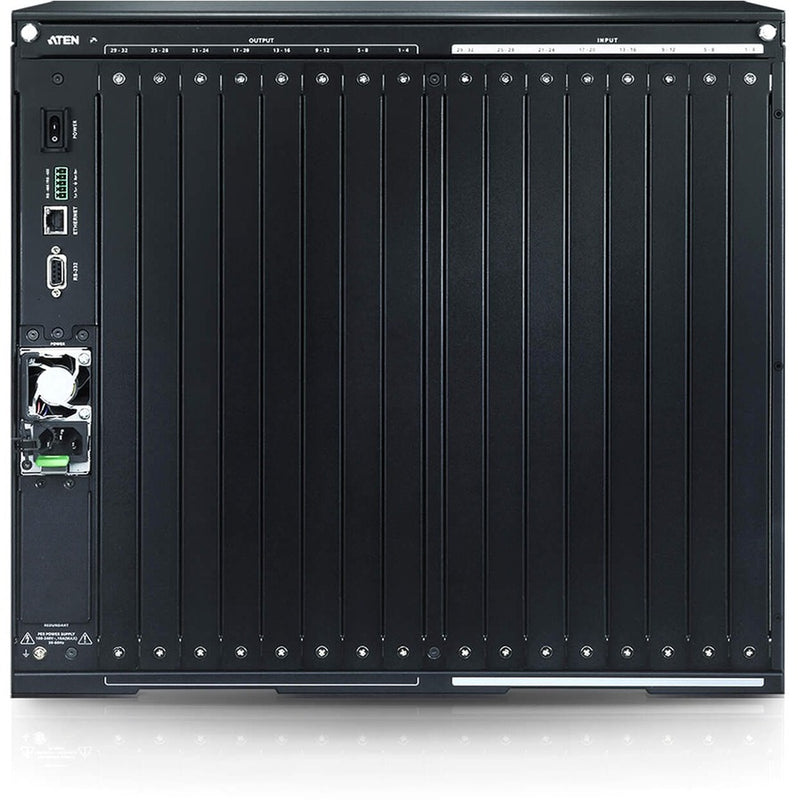

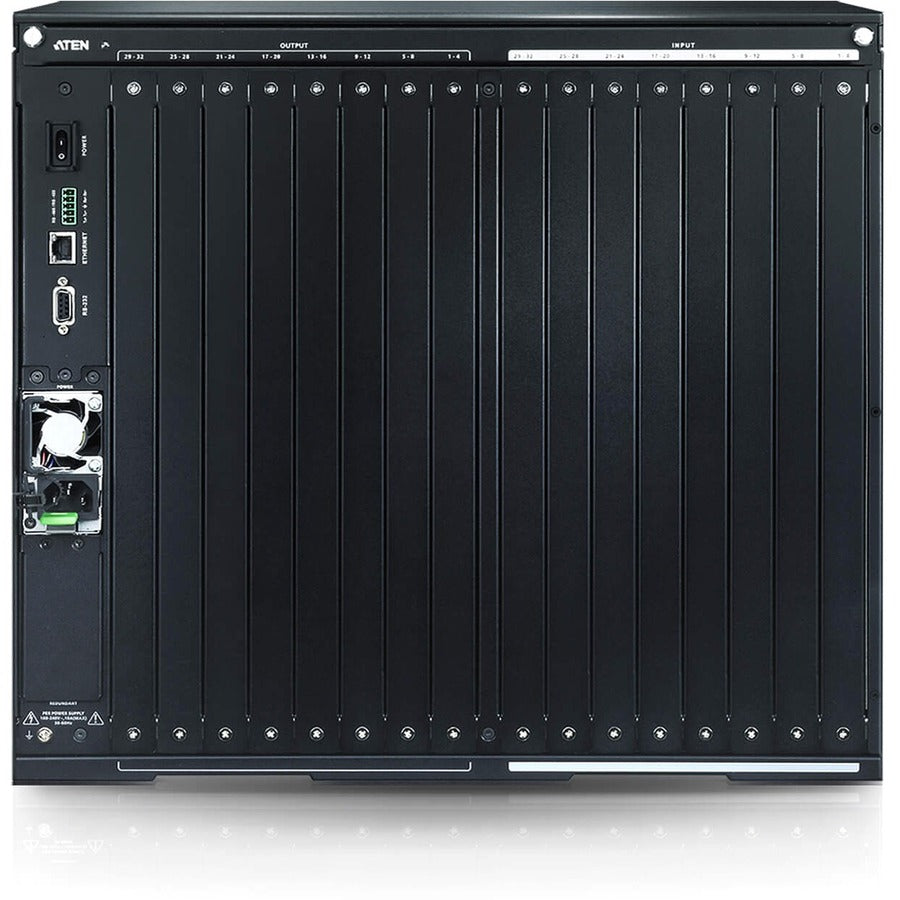

ATEN 32x32 Modular Matrix Switch-TAA Compliant

The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.

The VM3200 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows various combinations of digital video interfaces, including HDBaseT (VM7514 / VM8514), HDMI (VM7804 / VM8804), DVI (VM7604 / VM8604), 3G-SDI (VM7404), and VGA (VM7104). This makes it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.

• Multiple Control Methods - system management via front-panel pushbuttons, RS-232, RS-485/422, and Ethernet (Telnet / Web GUI) connections


• Hot-pluggable fan and power modules for easy maintenance and higher reliability


• EDID Expert™ - selects optimum EDID settings for smooth power-up and highest quality display


• Calendar-based scheduling plays connection profiles synchronized with real-time clock


• Live stream of connected video channels and image preview of video wall layouts via web GUI


• Video Wall - allows you to create custom video wall layouts via intuitive web GUI


• Seamless Switch™ - ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching, and stable signal transmissions*


• Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)


• Built-in Scaler on each output port converts input resolutions into the display's native resolution


• Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions
