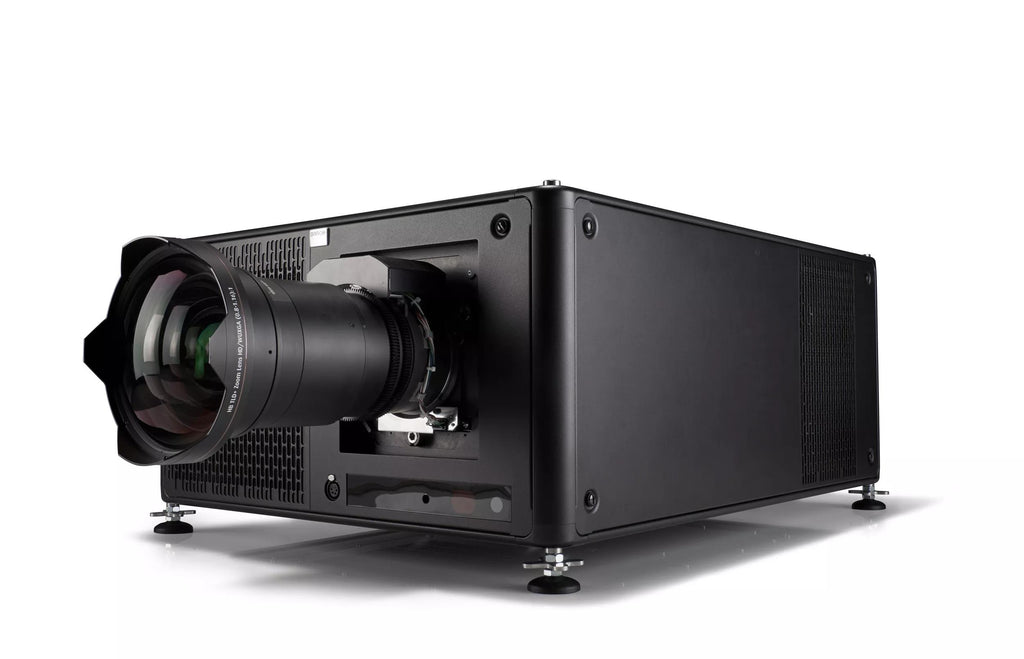

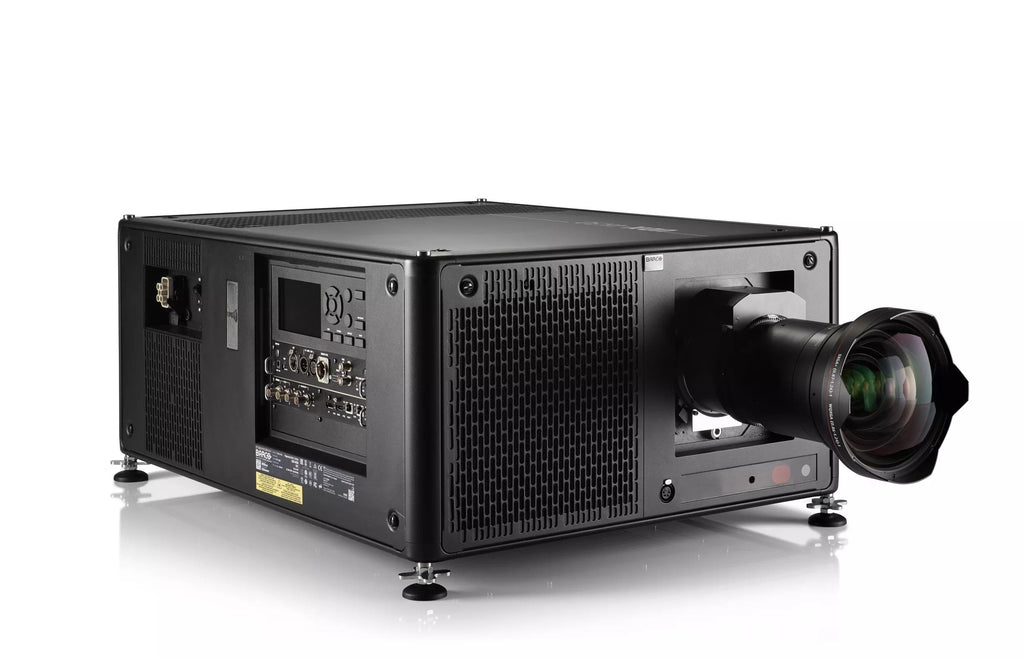

Barco UDX‑W32 - 32,000 lumens, WUXGA, 3-chip DLP laser phosphor large venue projector

General specifications

Projector type

WUXGA 3-chip DLP digital projector

Technology

0.96" DMD™ x3

Resolution

1,920 x 1,200

Brightness

32,000 center lumens/ 31,000 ansi lumen / 34,000 ISO

Contrast ratio

Full field 2200:1 / Barco Dyna Black 20000:1

Brightness uniformity

95%

Aspect ratio

16:10

ScenergiX

Horizontal and vertical edge blending

Lenses

TLD+ 0.37, 0.65-0.85, 0.73:1 ; 1.2:1 ; 0.8-1.16 ; 1.25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1

Optical lens shift

Vertical between -100% to +130%, depending on lens
Horizontal up to +/- 40%, depending on lens
Motorized zoom and focus (with lens memory on TLD lenses)
Motorized lens shift (with position memory on all lenses)

Color correction

P7

Light source

laser phosphor with inorganic phosphor wheel

Light source lifetime

25,000 hrs

Optical dowser

Digital

Picture-by-picture

Two sources simultaneously

Sealed DLP™ core

Standard

Orientation

360°

DMX 512

Standard

WARP

Direct adjust OSD + toolset

Image processing

Embedded warp & blend

Keystone correction

Yes

Integrated web server

Yes

CLO (constant light output)

Standard

3D

Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz*

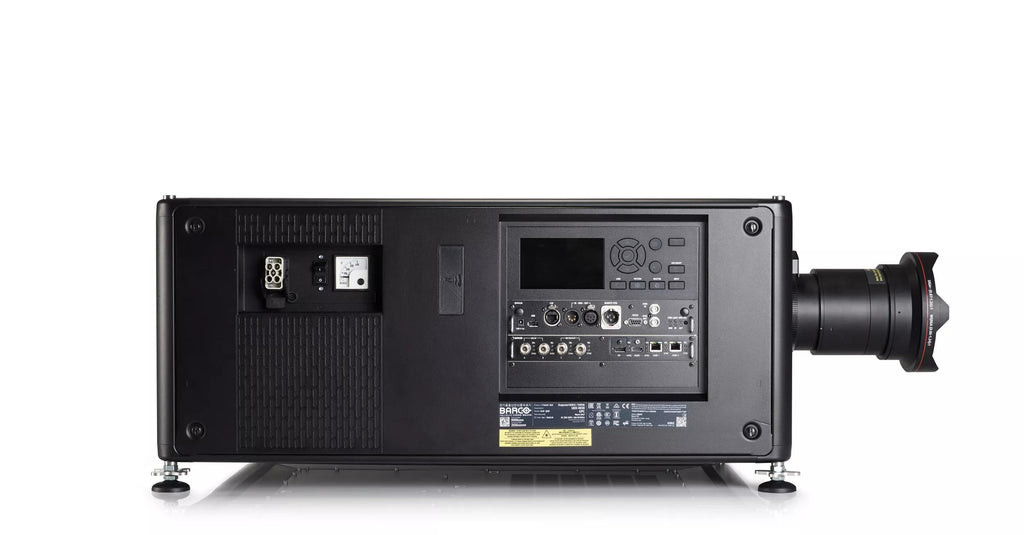

Inputs

Single HDBaseT; HDMI2.0 (HDCP2.2, HDR10); DP 1.2 (HDCP 1.3); Quad 3G/12G SDI / BarcoLink ULTRA

Optional Inputs

Quad DP1.2 / Fiber SFP

Input resolutions

From NTSC up to 4K (4,096 x 2,160)

refresh rates:

24hz to 120hz 4K/4KUHD (4096 x 2160/ 3860 x 2400) to 240hz WQXGA (2560 x 1600)

Max. pixel clock

600 MHz

Software tools

Projector Toolset + Android app + iOS app

Control

XLR wired + IR, RS232, Wifi (opt), GSM (opt)

Network connection

10/100 base-T, RJ-45 connection, Wifi (optional)

Power requirements

120-160V (reduced power) / 200-240V (+/- 10%), 20A, 50-60Hz

Max. power consumption

2,900 W nom / 3,100 W max. / STBY less than 10 W

Noise level (typical at 25°C/77°F)

52dB(A)

Operational ambient temperature

0-40°C / 32°-104°F

Operational humidity

0-80% (non condens)

Dissipation BTU

Max. 9,895 BTU/h

Dimensions (WxLxH)

660 x 830 x 350 mm / 25.95 x 32.7 x 13.78 inches

Shipping Dimensions

(WxLxH) 800 x 1200 x 685 mm / 31.49 x 47.24 x 26.96 inches

Weight

92kg (202 lbs)/shipping weight from factory: 110kg (242 lbs)

Standard accessories

Power cord, wireless/XLR wired rugged remote control

Certifications

Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs

Warranty

3 years
