Description

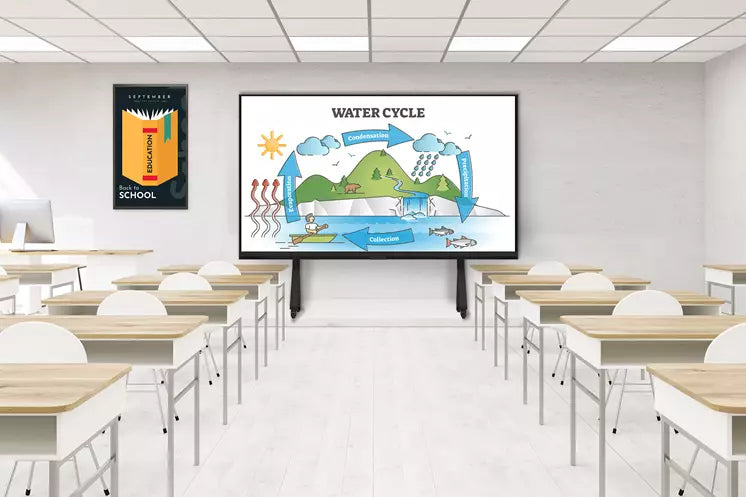

The Planar® UltraRes™ L Series 136", Full HD resolution all-in-one LED display combines the ease-of-use and best-in-class processing of the Planar UltraRes family with award-winning Planar fine pixel pitch LED technology for meeting rooms and classrooms. The display comes with a wall mount and can be quickly assembled with only two people. It features on-board processing, audio, power from only one 110V cable, native multi-point touch and multiple inputs to support simultaneous viewing of up to four content sources. Optional rolling floor stand is available.
Specification | Detail |
---|---|
Planar Model | URL136-T |
Planar Part Number | 998-3398-00 |
Display Diagonal | 136in |
Display Active Area | 118.1" x 66.4" (3000mm x 1688mm) |
Display Resolution | Full HD (1920 x 1080) |
Aspect Ratio | 16:9 |
Pixel Pitch | 1.5625 mm |
Pixel Density | 409,479/m² |
Contrast Ratio | 5000:1 |
Brightness | 350 nits (max) |
Response Time (typ) | <1 ms |
Frame Rate | TBDHz |
Color Gamut | 90% of P3 |
HDR (High Dynamic Range) | HDR10 |
Color Temperature, Adjustable (k) | 3,000 - 12,000; 6500, 9300, 12000 presets |
Viewing Angle (typ) | 160° |
External Connections | DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, USB-B (for touch controller) |
Display Control | IR, RS-232, LAN, HDMI-CEC, Keypad, Web Browser Interface |
Multi-Source Views | PiP, Dual, Triple, Quad |
Modes | 4x 1920x1080 @ 24/25/30/50/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz |
Audio Input | PC Line In |
Audio Output | PC Line Out, S/PDIF |
Speakers | 10W x 2 built-in |
Mounting | Wall mount included. External device mounting: 75 x 75mm. Optional rolling floor stand available. |
Fanless | Yes |
Power Consumption, Maximum (watts) | 1500W (standby: <0.5W) |
Line Voltage | 120-240V; 50/60Hz |
Service Access | Front, Rear |
Environment | Indoor |
LED Type | 2in1 package w/lens |
LED Refresh Rate | TBD |
LED Lifetime | 100K hours Lifetime (Half brightness) |
Display Dimensions | 119.4" x 70.6" x TBD" (3032.0mm x 1794.0mm x TBDmm) |
Bezel Width | TBD" (TBDmm) |
Display Edge to Active Area | TBD |
Installed Depth (from Wall) | 3.5" (87.9mm) |
Dimensions including Wall Mount | 119.4" x 70.6" x 3.5" (3032.0mm x 1794.0mm x 87.9mm) |
Dimensions including Optional Stand | 119.4" x 94.6" x 30.7" (3032.0mm x 2404mm x 780mm) or 119.4" x 98.6" x 30.7" (3032.0mm x 2504mm x 780mm) |
Display Weight | TBDkg |
Display Weight with Wall Mount | TBD |
Display Weight with Optional Stand | TBD |
Operating Temperature | 0° to 40° C |
Operating Humidity | 10-80% |
Storage Temperature | -20° to 85° C |
Storage Humidity | 10-85% |
Touch Technology | IR touch: 10 points |
OS Compatibility | Windows 10, 11, Mac OSX and Linux |
Enclosure | TBD |
Features | MediaPlex Plus Processing, Scheduling, Presets |
Solution Includes | URL136-T display, US and EU power cords, HDMI cable, USB A to B cable, IR cable, remote control, vacuum removal tool and charger, gloves, and Quick Start Guide |
Approvals | FCC Class A, cTUVus, RoHS |
Recommended Usage | Up to 24x7 operation |
Warranty | 5 years |
Security | No WiFi, no Android O/S, signed and encrypted firmware |
